The image of a video camera is one of the main points of a surveillance system. It is important to pay close attention to its condition. Why the picture from a video camera is of poor quality and what are the ways to solve this problem, these are the questions that we answer in the article.
It’s not uncommon for users to experience image quality problems with their digital camcorder. The video can be blurry, with a double image, foggy. The problem occurs not only at night but also during the day. Indeed, it does not have a good effect on the quality of monitoring of the object under surveillance.
There are several reasons for the decrease in image quality. Next, we will analyze the main five factors.
The sun in the lens affects the image sensor. This gradually causes deformation and leads to blurring and loss of contrast. It is important to test the video immediately after installing the system, taking into account the movement of the sun, and looking for glare. This will help determine if the camera needs to be configured.
Infra-red glare is a problem for cameras with night lighting which are mounted under some kind of ledge. The camera will then dim the picture and try to compensate for the glare. To avoid this it is better to move everything in the vicinity out of the camera’s field of view.
There is a great deal of useful information in the article “Choosing a camera with night vision: 6 important points + examples“.
Installing an uninsulated camera on a conductive surface will result in the electric current flowing everywhere. This will eventually affect the camera’s image as well. The solution is to attach a wooden part to the surface.
The fault is indicated by a horizontal line on the screen. It may be caused by incorrectly assembled wiring. It will not be cheap and may take longer to fix. Attachment of an adapter to the camera may help. It filters out the noise.
The article “Video surveillance protection from 3 types of overvoltages” can be of great help.

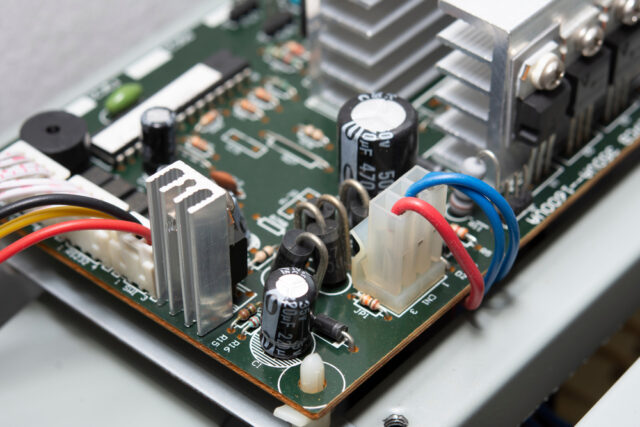

Any problems with the power supply are also indicated by horizontal lines on the screen. The picture is not moving. The power supply unit should be replaced.
The reasons for problems with the video camera picture may be various, such as dirty lens, fuzzy or weak WI-FI signal, long cable, etc.
What to do if the image of a video camera for video surveillance is of poor quality? Next, we analyze the possible difficulties with the image and ways to solve these issues.
First, gently remove dust, and cobwebs from the lens if any. Make sure that the cable length is optimal for the camera and that the wireless camera is installed close to the router. The focus and zoom should be adjusted.
In this case, it is necessary to check:
To improve the color image of a video camera proceed as follows:
The brightness of the image can be reduced by:
Ways to increase camera clarity and brightness are as follows:
Low resolution produces poor picture quality. You can find this in the camera’s specifications. So, it is important to select the resolution according to the purpose of the video surveillance.
The monitor on which you watch video files should match the resolution of the camera.
Video has two encoding systems: NTSC and PAL. Resolution and frame rate are different. Black trembling lines are produced by a camera that is not compatible with any of them. Please, note that the playback format is specified in the camcorder datasheet.
A camcorder without an IR filter produces a blurred night image. It will also produce poor video indoors under certain lighting conditions. The solution is to purchase a camera of better quality.
Moving vertical or horizontal lines on the monitor indicates the problem with the grounding or power supply unit itself. Check that the power supply unit works correctly. There may be a need for a video surveillance switchboard. There are 4 reasons for installing it.
Periodic software updates from manufacturers are aimed at eliminating errors and improving all camera operational processes including image quality. Please check whether a particular update is suitable for your camera.
A simple but long-standing “on-off” rule helps to set up the image in some cases.
Technical support from the company that installed the surveillance system will be able to help fix the problem.
Pay attention to the quality of the video image during the first days of operation. This will allow you to rectify any problems as quickly as possible and get the most out of your surveillance system.
